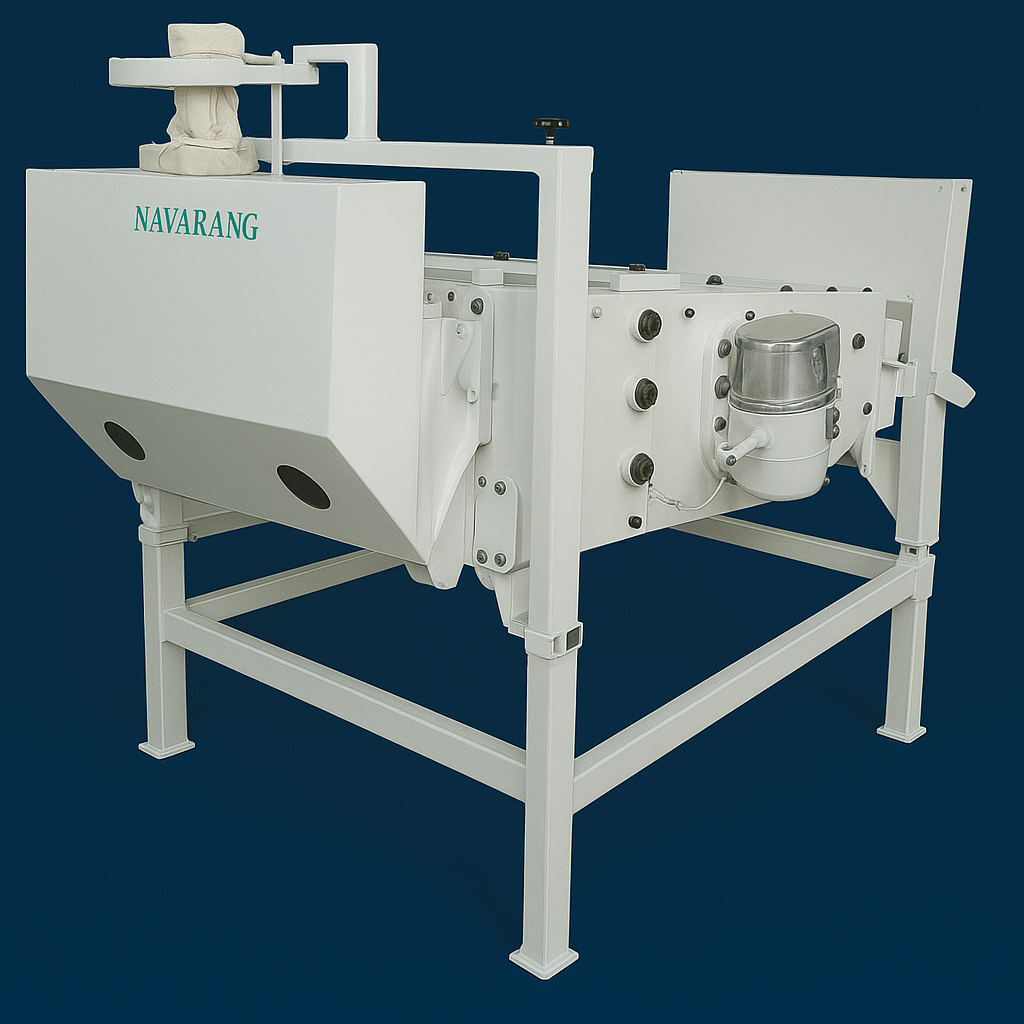

Vibro Separator
The Navarang Vibro Separator is especially applied in wheat, durum, corn/maize, rye, soyabean, oat, buckwheat, spelt, millet, and rice mills for cleaning, or in bulk storage systems for precleaning. In addition, the machine is also successfully used in animal feed production plants, seed treatment systems, oilseed cleaning installations, and cocoa bean grading systems. The Vibro Separator separates the grain from coarse and fine impurities by screening. In addition, it grades a wide variety of products by size.
Features
- Easily accessible screens for cleaning and changing
- Easily adjustable deck inclination
- Stroke and angle of throw ensure smooth performance due to vibratory motors
- Hollow rubber springs for minimum main frame vibration
- Easy-to-exchange wear parts
- Independent aspiration system
- No lubrication points
- Rugged design
- Easy operation
- This Vibro Separator Consists of three sieve desks, thus it removes coarse impurities like large kernels, string straw, wood, stones or clumps of soil, as well as fine impurities such as sand and breakage from the grain
Maintenance
- Rubber-ball cleaning system continuously and effectively cleans the screens, reducing maintenance and increasing throughput
- Rugged design minimizes wear and tear over time
Services
- 12 months manufacturer's warranty
- Spare parts
- Retrofit & Reconditioning
- Maintenance
- Repairs
High Versatility
- Can be combined with different aspiration systems for extremely flexible application
Technical Specifications
| MODEL NO. | CAPACITY | PRODUCT DIMENSION | MACHINE POWER |
|---|---|---|---|
| NM-01 | 1.5 to 3.0 TPH | 2800 x 1900 x 1500 | 1 HP |
| NM-59 | 2.0 to 4.0 TPH | 2800 x 2000 x 1500 | 1 HP |
| NM-61 | 3.0 to 5.0 TPH | 2800 x 2200 x 1500 | 1 HP |
