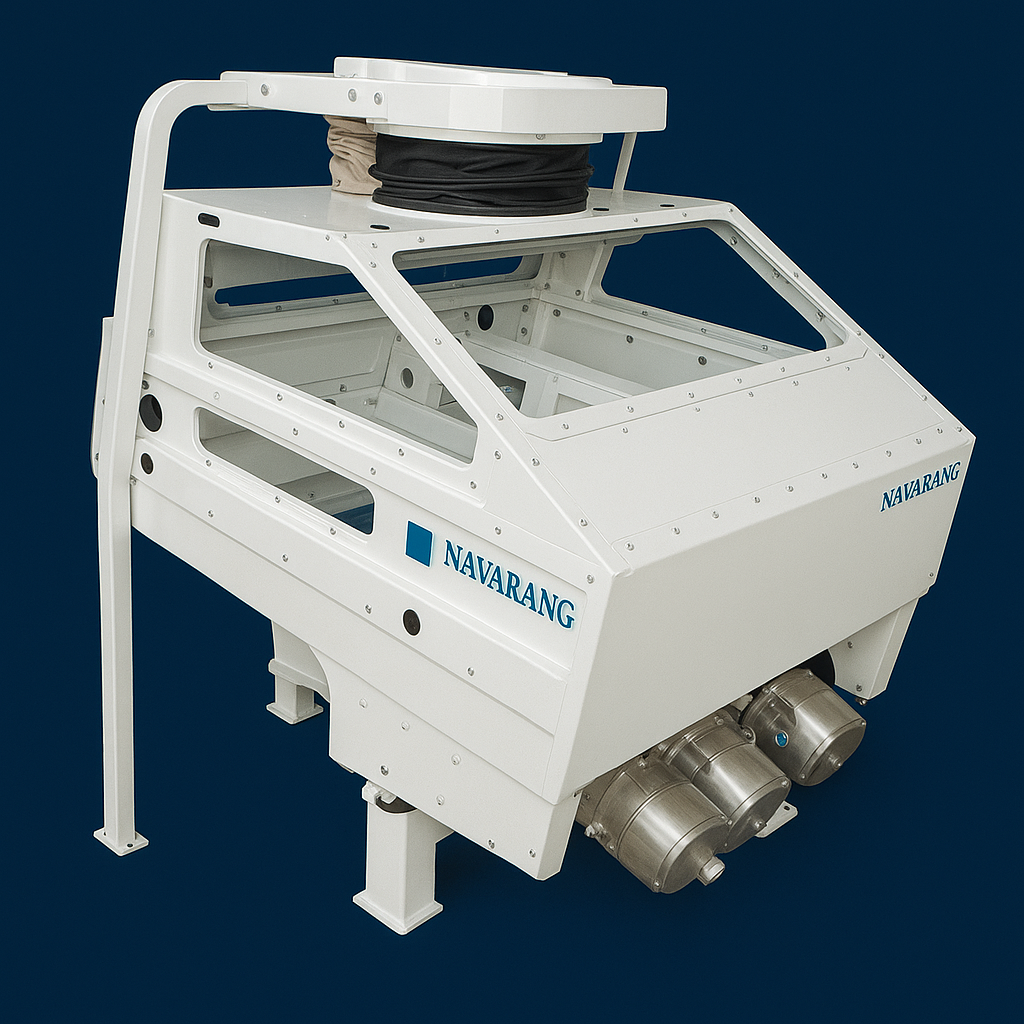

Vibro Destoner
This destoner is characterized by its wide variety of applications. In addition to standard applications with wheat, rye, and corn/maize, the machine can also be used in specialty mills for processing oats, buckwheat, barley, spelt and millet. For separating stones from a continuous product stream, reliable removal of high-density impurities such as stones and pieces of metal, mud ball and glass is achieved on the basis of differences in specific gravity. Design: With or without air-recycling system. It Works on the principle of vaccum negative pressure.
Features
- All steel welded construction
- Rectangular vibrating deck
- Silent and smooth operation
- Practically vibrationless, finely counter-balanced
- Independent Turbo Air Extraction System
- Air flow rate is adjustable
- Tilt of the deck is adjustable
- Shaking speed of the deck is adjustable
- Dynamically balanced fan
- Hollow rubber springs for minimum main frame vibration
- Easy-to-exchange wear parts
- Rugged design
- Easy operation
- Total recovery of grain/seeds without wastage during destoning operation
- The machine is pre-wired from electric motor to connection for incoming power supply
- Capacity is based on commodity & contamination
Maintenance
- Heavy-duty and robust structural frame absorbs vibrations
- Rubber-ball cleaning system continuously and effectively cleans the screens
- Reduced maintenance requirements
- Increased throughput capacity
Services
- 12 months manufacturer's warranty
- Spare parts
- Retrofit & Reconditioning
- Maintenance
- Repairs
Technical Specifications
| MODEL NO. | CAPACITY | PRODUCT DIMENSION | MACHINE POWER |
|---|---|---|---|
| NM-02 | 1.5 to 3 TPH | 1600 x 700 x 1700 | 0.5 + 5 HP |
| NM-30 | 3.0 to 5 TPH | 1600 x 1350 x 2000 | 1 + 10 HP |
